TCG Karabiga (P-1205), one of the Tuzla-class patrol boat's.



Tuzla-class patrol boats are domestically made. 26 so far completed. 10 sold to Türkmenistan.

General characteristics
Type: Patrol boat
Displacement;
400 long tons (406 t) full load
Length
55.75 m (182 ft 11 in)
Beam
8.85 m (29 ft 0 in)
Draught
2.5 m (8 ft 2 in)
Propulsion
2 × MTU 250kw each diesel generators and engines, Otto Piening shaft and Propeller
Speed
25 knots (46 km/h; 29 mph)
Range
1,000 nmi (1,900 km) at 14 kn (26 km/h)
Endurance
1500 nmi
Complement
35 (15 officers, 20 privates)
Sensors and
processing systems
25 kW X-Band Navigation Radar with ARPA/W(ECDIS) capability;
Electro optical low-weight, multi-purpose, thermal imaging sensor; Optical Gyro compass with INS capability,
Simrad SP92 Mk II hull-mounted low frequency Sonar
Armament
40 mm Oto Melara Twin compact gun,
2 × Aselsan 12.7 mm Stabilized Machine Gun with IR imaging and remote control capability (STAMP),
Roketsan ASW rocket launcher,
2x4 Depth charges


View attachment 343121View attachment 343122View attachment 343123
To view this content we will need your consent to set third party cookies.
For more detailed information, see our cookies page.
Navy SF (SAT) members armed with modified Colt M4A1 5.56mm carbines with spartan ARMS free float rails, EOTech XPS3 holographic sights with G33 3x magnifiers AN/PEQ-16B laser modules and Surefire SOCOM556 suppressors during a VBSS exercise as a part of NATO Operation Sea Guardian. They are also wearing Ops-Core FAST combat helmets with RAC headsets, AN/PVS-31 night vision goggles, MOHOC helmet camera and SS precision Manta ır strobes.

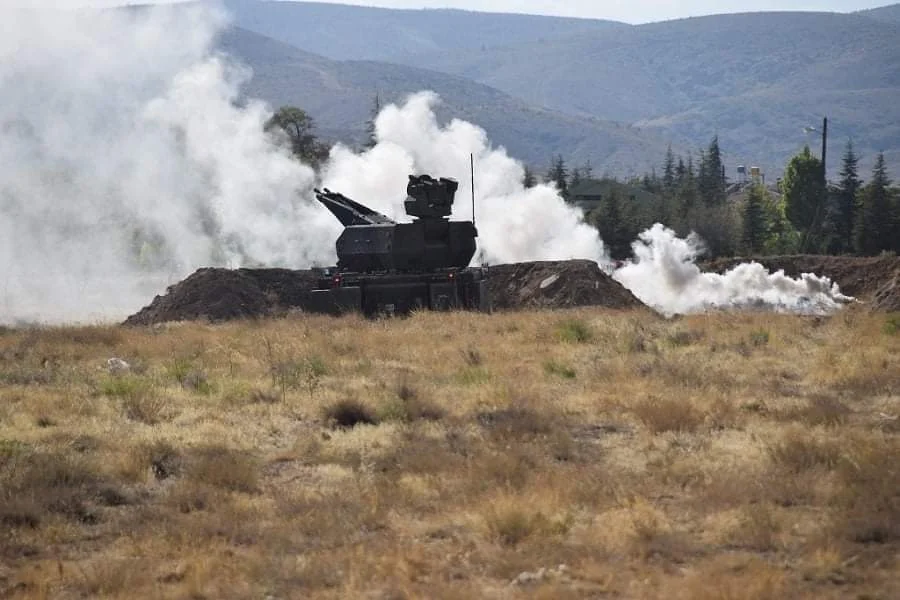

Aselsan Korkut 35mm SPAAG during field training at Polatlı Training Grounds. ( Via DENO)



Roketsan TR-300 Kasırga-G Guided 302mm multiple rocket launcher during field training at Polatlı Training Grounds.



M113T2 mechanized combat & control vehicle during a field training. Soldiers wearing ASELSAN ZAMBAK Headset & Helmet Unit.


Leopard 2A4 tanks moving behind the sappers during a field training. They are using domestic made Tübitak OZAN / Foldable Mine Detector.


Yavuz Class Frigates
Main Characteristics
Length-Beam-Draught115,5 x 14,2 x 4,1 mt
Displacement TonnageStandard : 2414 t. Full Load : 2919 t.
PropulsionCODAD / 4 MTU Diesel / 30.000 HP/ 2 Propellers
Range/Speed18 kts / 4100 nm - Max. Speed: 27 kts
Complement21 Officers- 90 Petty Officers- 11 Enlisted Specialists - 46 Enlisted
HelicopterAB-212 (Electronic Warfare, Surface Warfare)

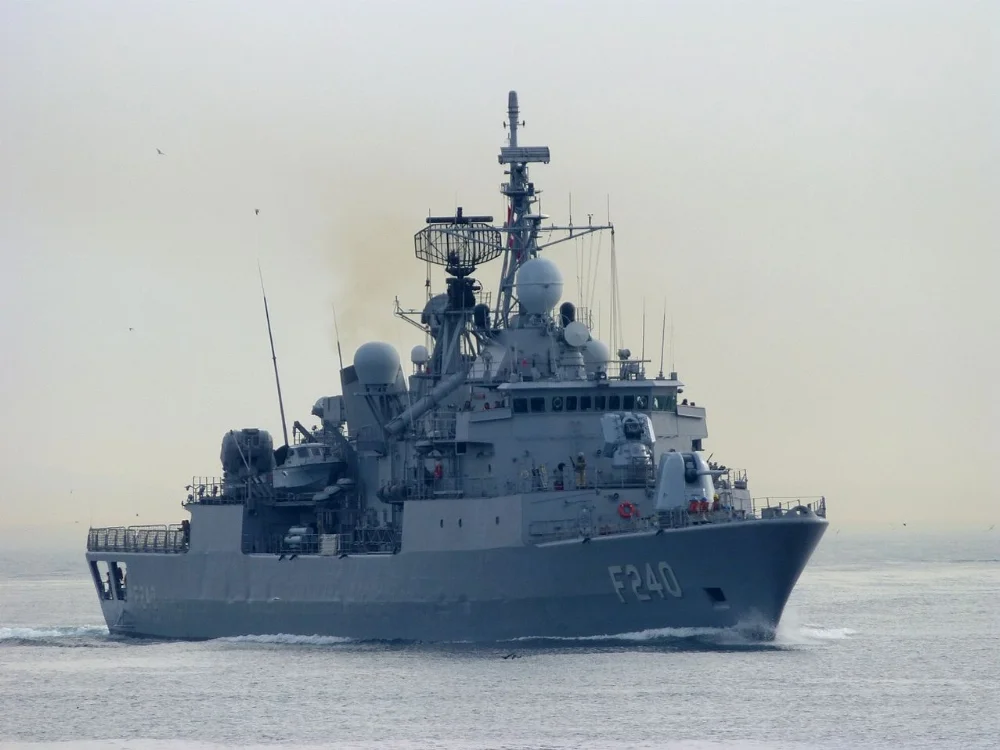

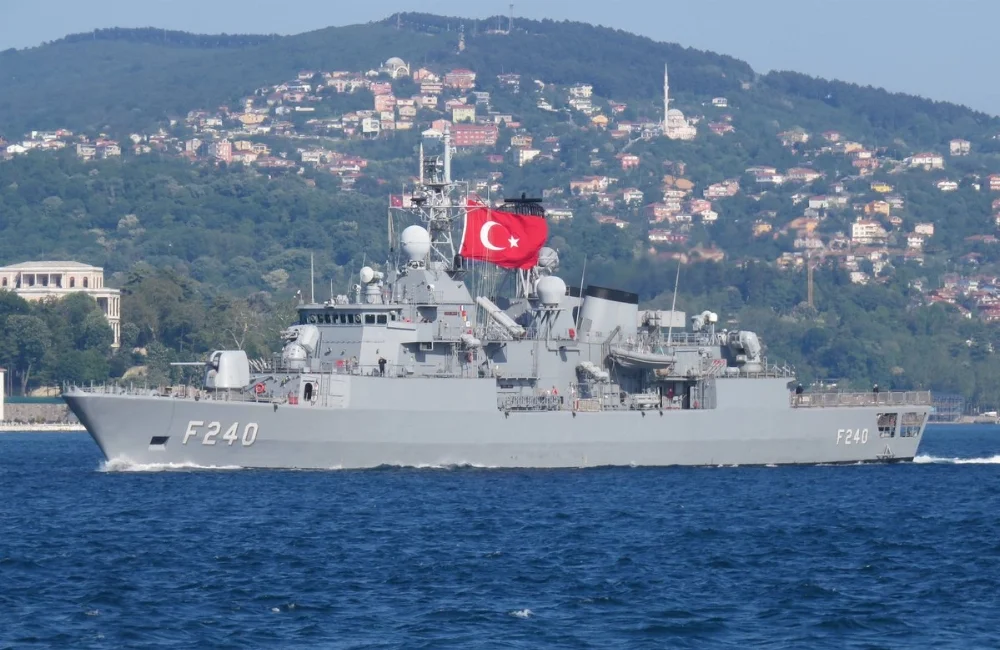

TCG Yavuz (F-240)







TCG Turgutreis (F-241)

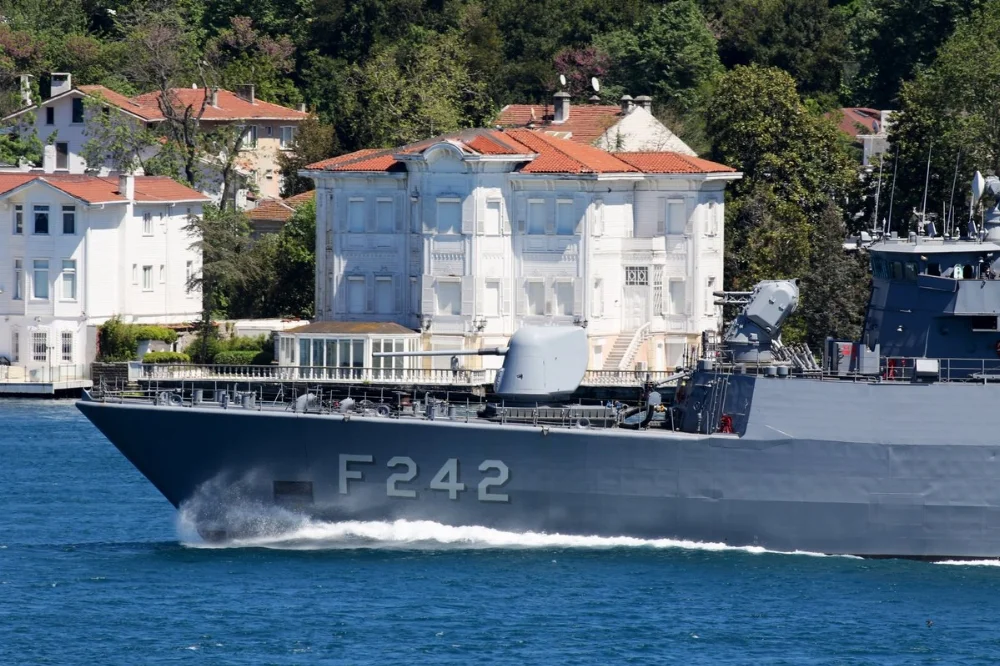

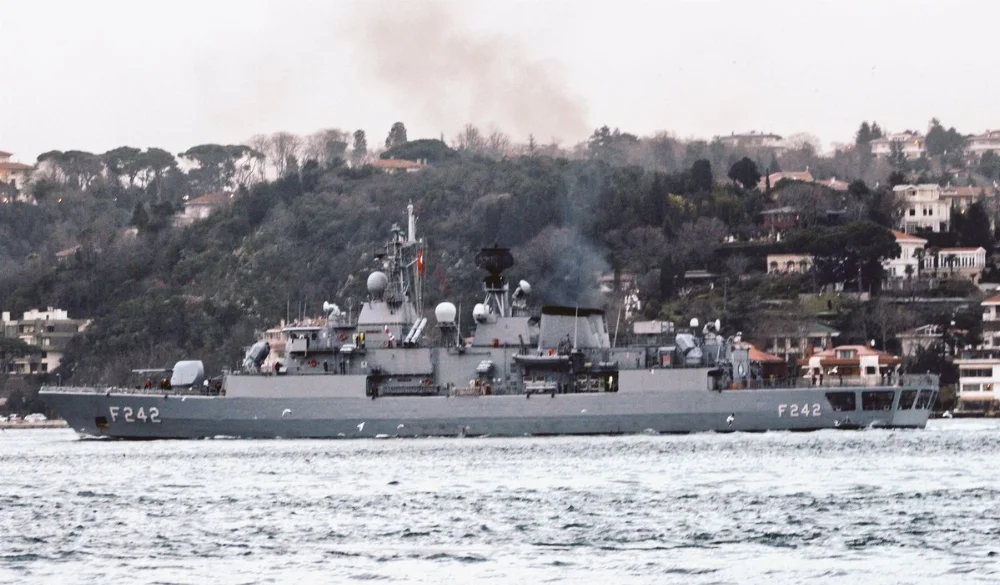

TCG Fatih (F-242)

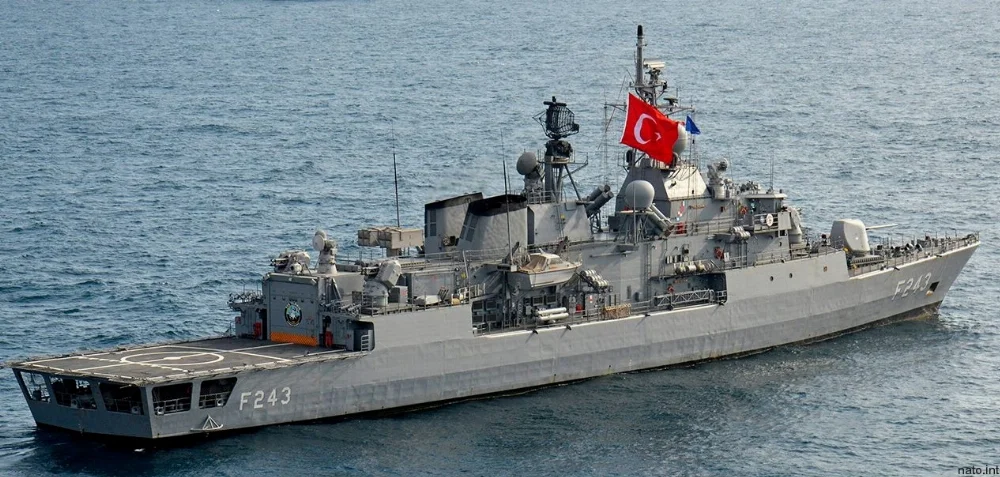

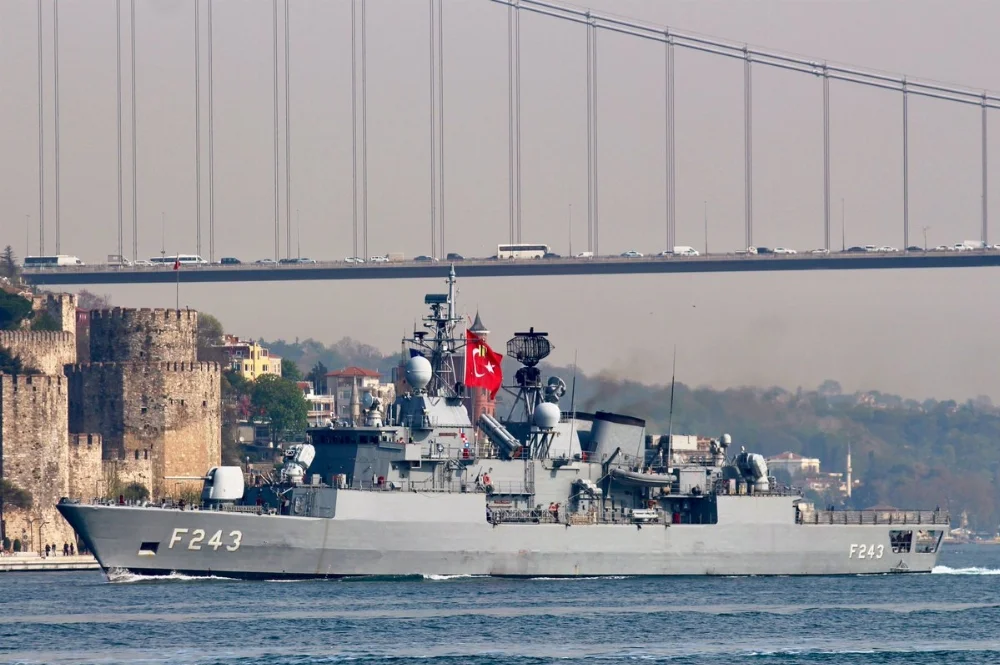

TCG Yıldırım (F-243)



Last edited:

Barbaros Class Frigates​


Main Characteristics
Length-Beam-Draught118 x 14,8 x 4,3 mt
Displacement TonnageFull Load : 3380 t.
PropulsionCODAD / 4 GE LM 2500 Gaz Türbin / 2 MTU Dizel / 60000 HP/2 Pervane
Range/Speed18 kts / 4100nm - Max. Speed : 32 kts
Complement21 Officers- 91 Petty Officers- 11 Enlisted Specialists - 46 Enlisted
HelicopterAB-212 , SEHAWK ( Denizaltı Savunma Harbi, Elektronik Harp, Suüstü Harbi)

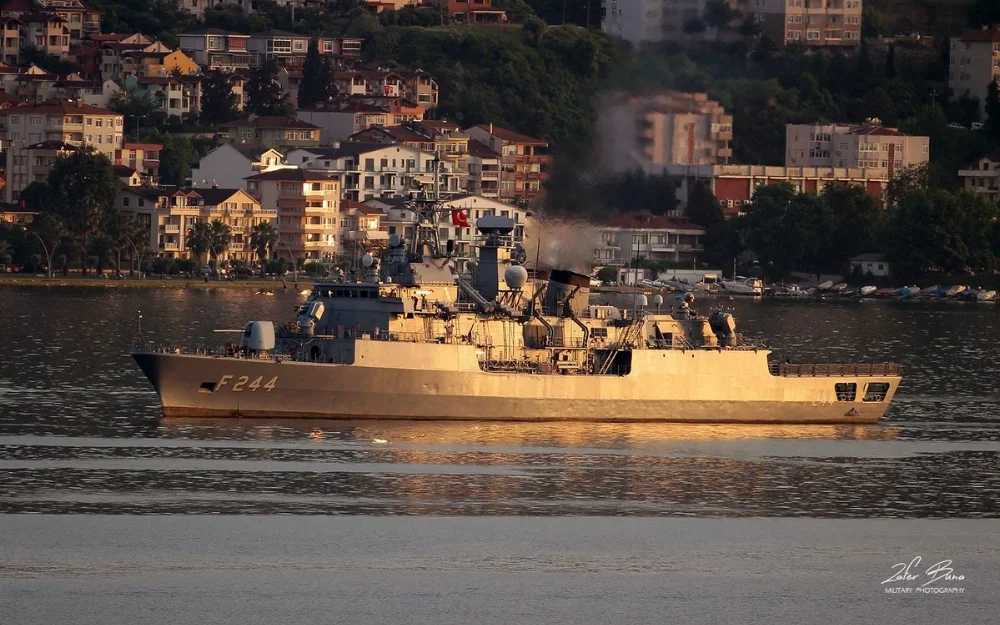

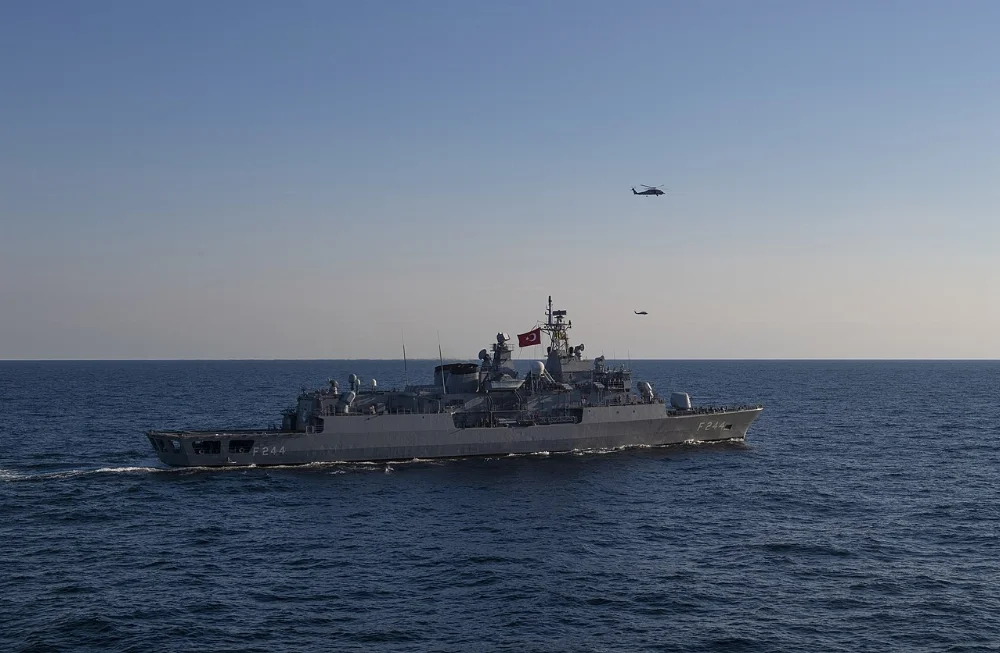

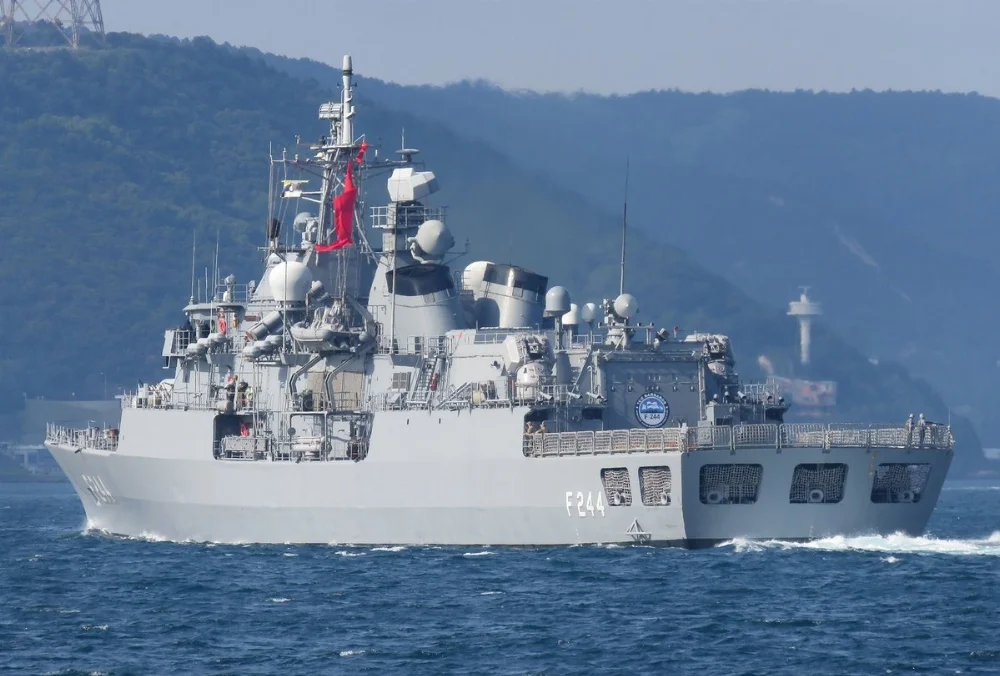

TCG Barbaros (F-244)

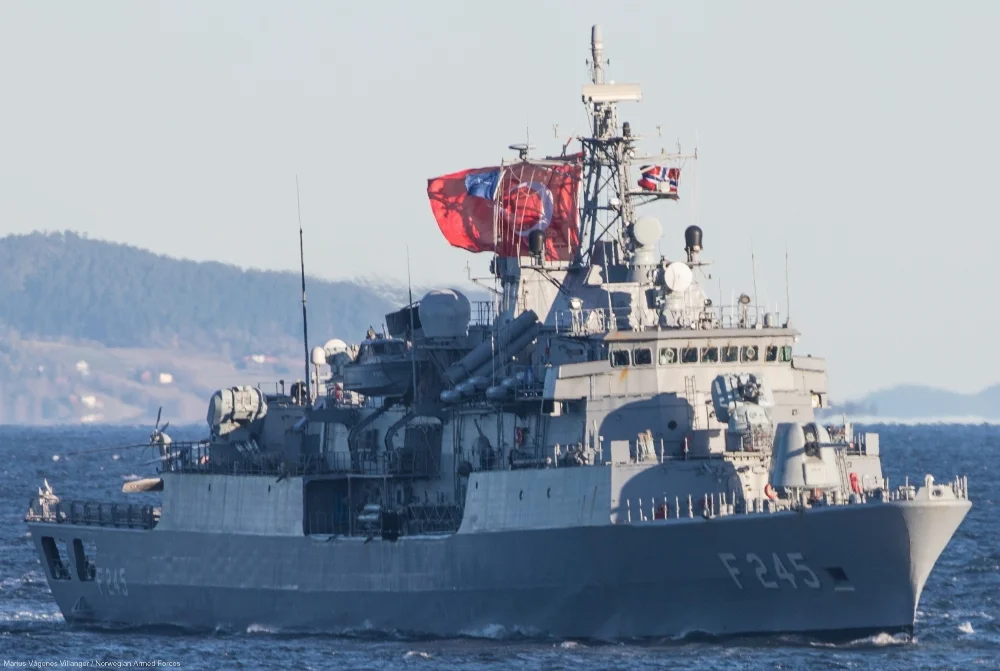

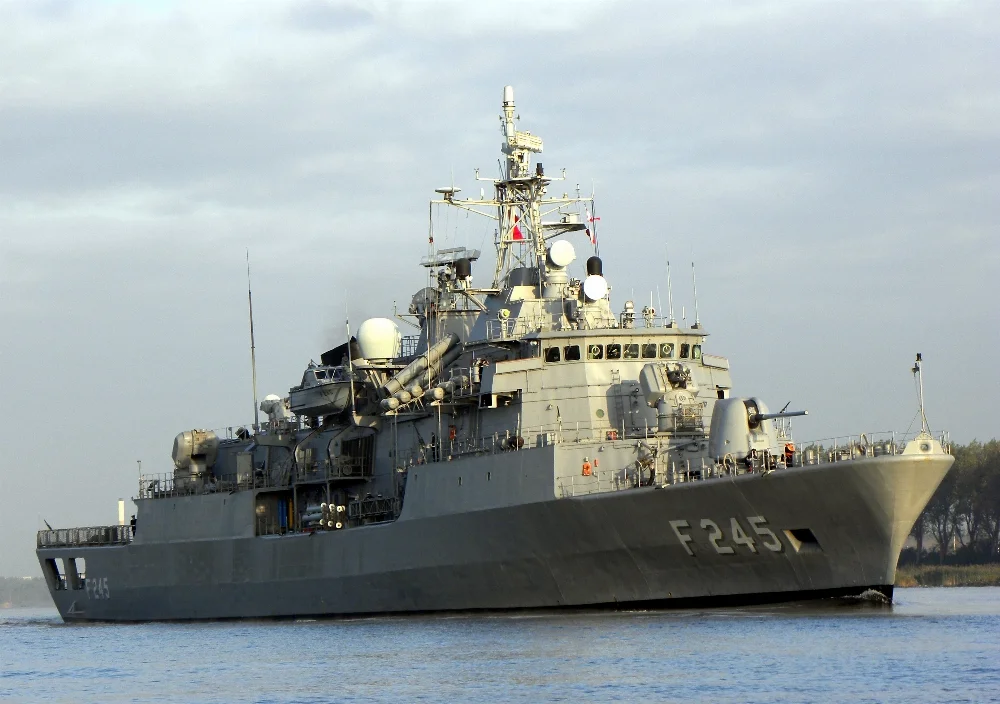

TCG Oruçreis (F-245)

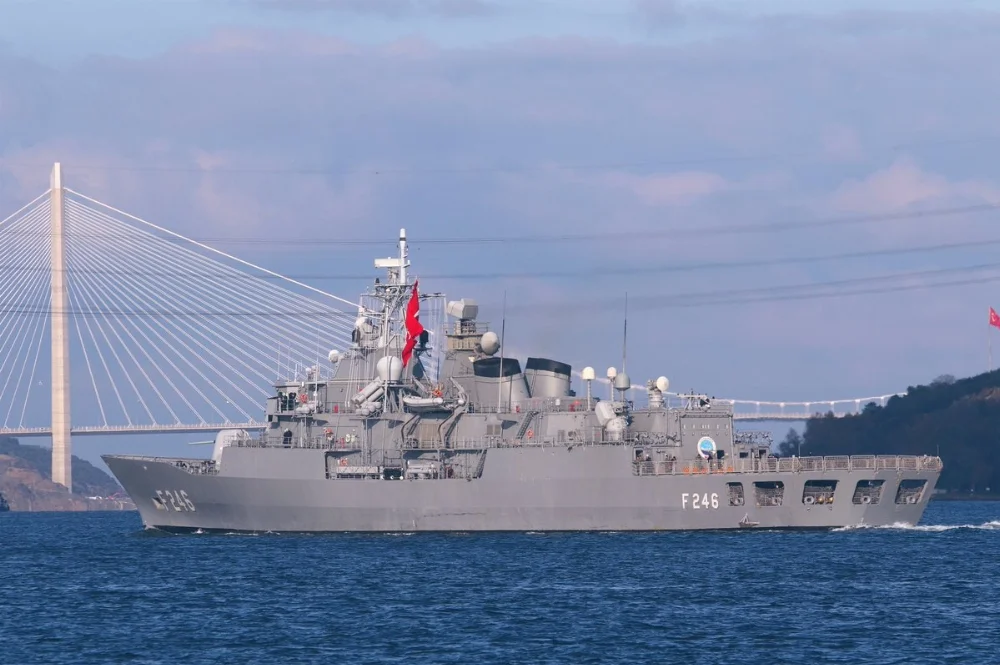

TCG Salihreis (F-246)

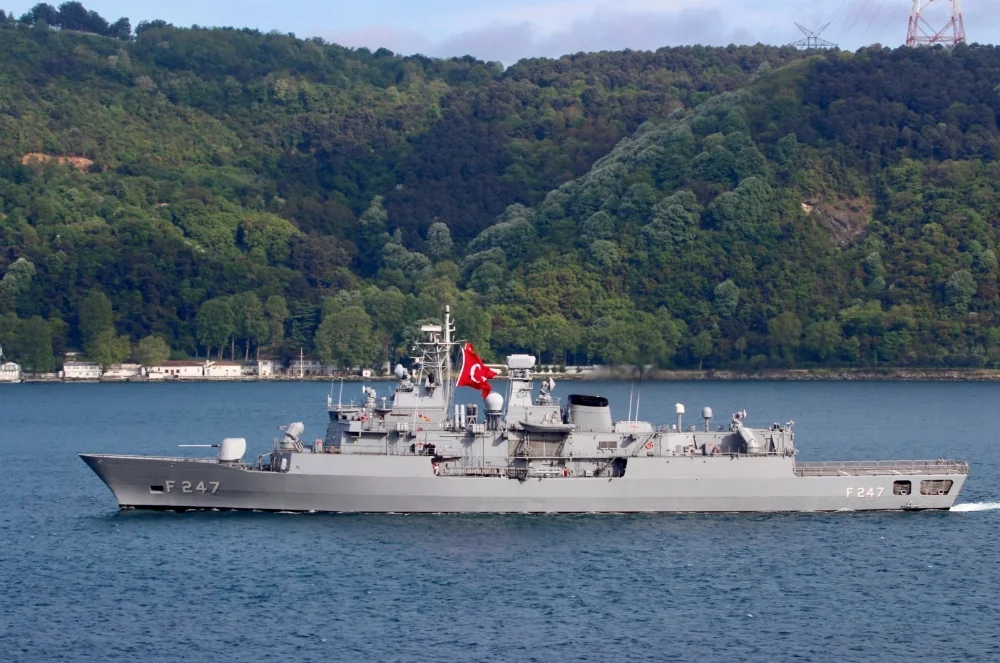

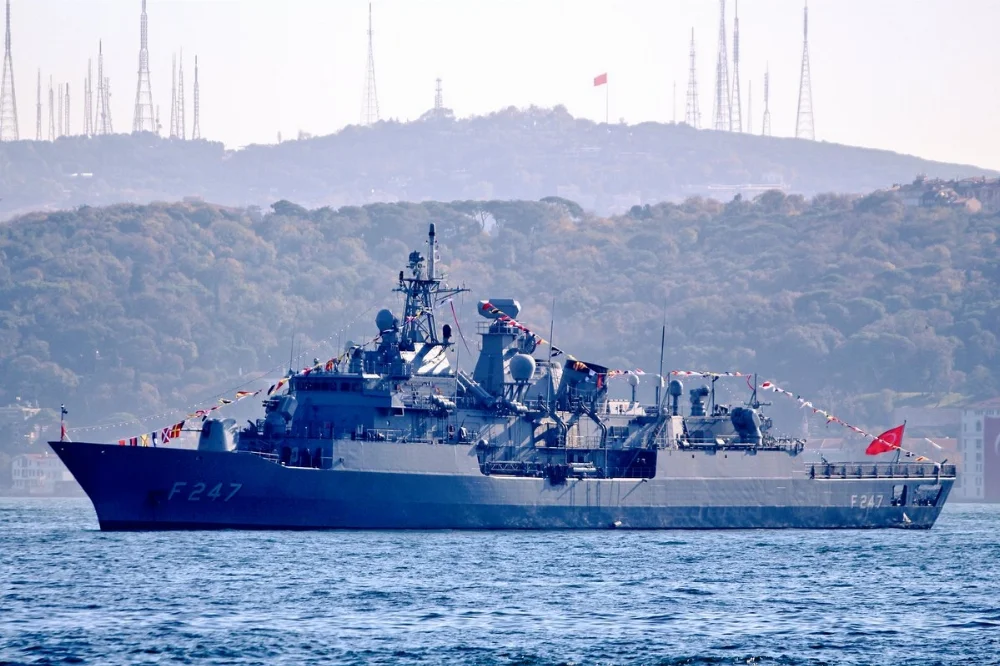

TCG Kemalreis (F-247)







Gabya Class Frigates via Cengiz Sogutlu logo's from Turkish Naval Forces​


Main Characteristic
Lenght-Beam-Draught135,6 x 13,7 x 8,5 mt
Displacement TonnageFull Load : 4100 t.
Propulsion2 x GE LM 2500 Gaz Türbini / 41000 HP / 1 Pervane 2 Ad Manevra için Baş İtici
Range/Speed20 kts / 4500 nm - Max. Speed : 30kts
Complement21 Officers- 98 Petty Officers- 13 Enlisted Specialists - 48 Enlisted
HelicopterAB-212 , Sea Hawk (Denizaltı Savunma Harbi, Elektronik Harp, Suüstü Harbi)

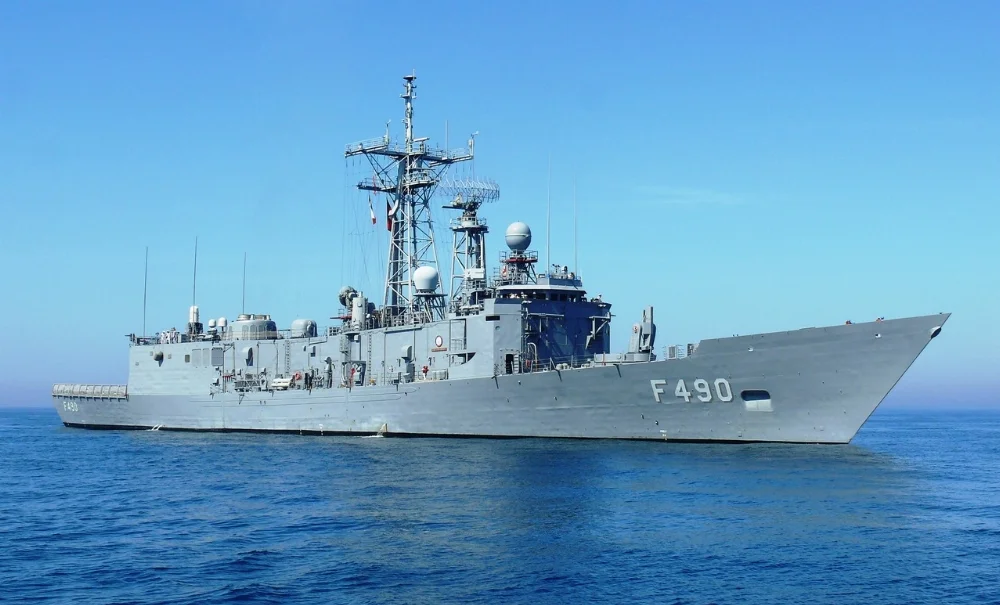

TCG Gaziantep F 490

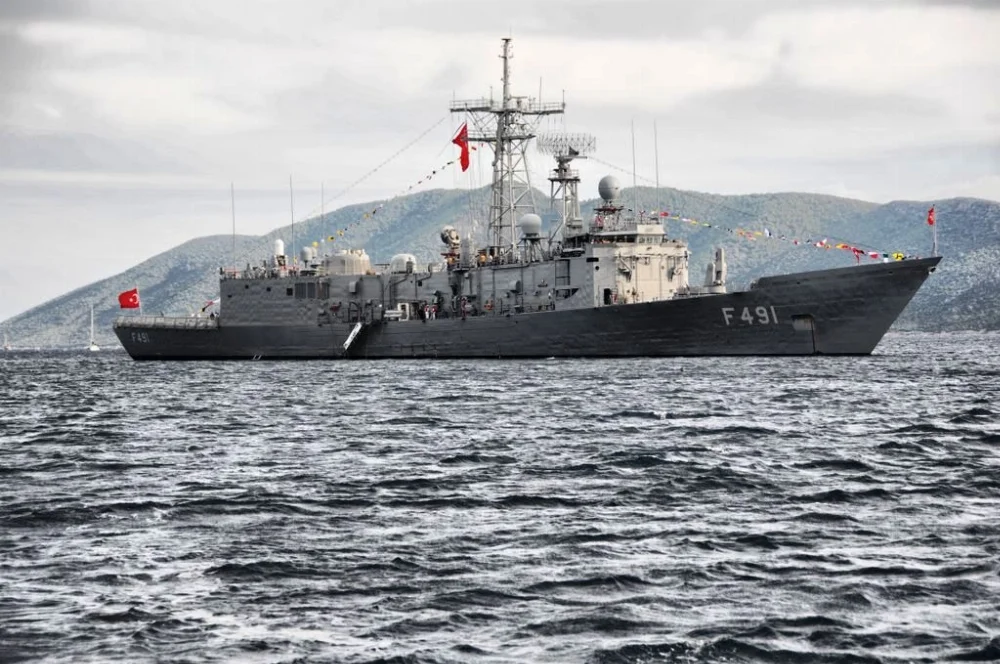

TCG Giresun F 491

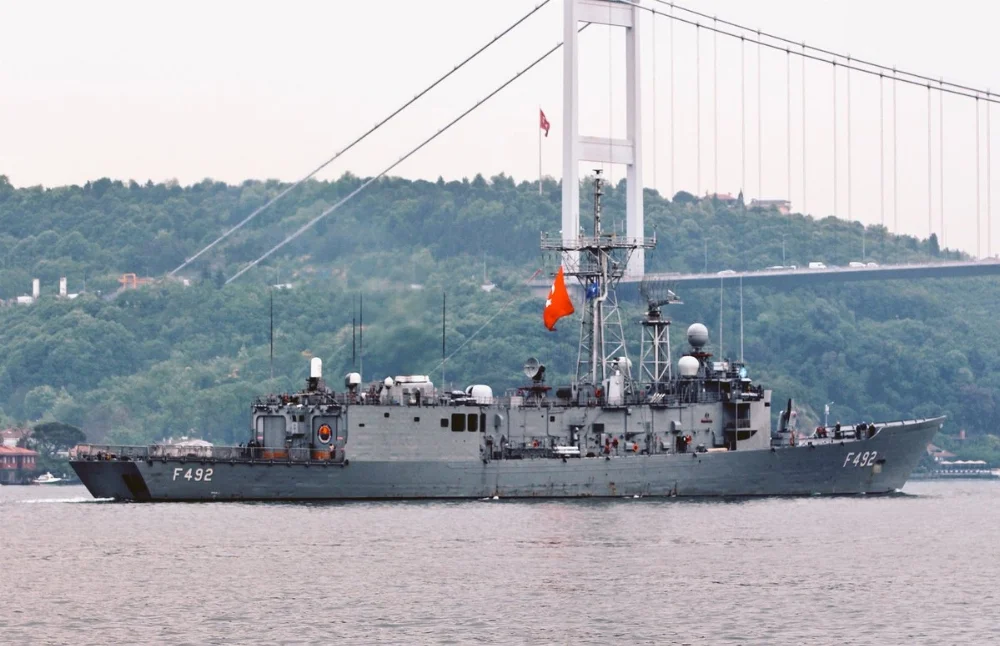

TCG Gemlik F 492​






TCG Gelibolu F 493​






TCG Gökçeada F 494​






TCG Gediz F 495​







TCG Gökova F 496​






TCG Göksu F 497​






Japanese Asagiri-Class Destroyer JS Aasagiri DD-151 Turkish Naval Forces Gabya Class TCG Gelibolu F-493 Japanese Training Ship JS Kashima TV3508 Japanese Training Vessel. TV Shimayu-Class JS Setoyuki TV3518 Eastern Mediterranean

Turkish Gabya class frigate TCG Gelibolu made a passing exercise in Eastern Mediterranean with the Japanese Training Fleet.

According to the official statement various maneuvers, training and drills were performed, personnel was exchanged between the ships. It is said the exercise has contributed to the development of interoperability and cooperation between Turkey and the Japanese Navy.


Ottoman frigate Ertuğrul monument








Frigate Ertuğrul Memorial in Kushimoto, Japan.



The Japanese Navy is much loved and respected navy in Turkey. During war of indepence Lieutenant Colonel Yukichi Tsumura, who did not deliver the prisoners to the Greek soldiers who blocked the ship's path when he brought 1012 Turkish soldiers captured by the Russians in the First World War to Istanbul, he is a highly respected person for the Turkish navy & people..


Yamamoto, Admiral of the Japanese Fleet, Visiting Atatürk Battleship of Maiyyeti and Izumu 1926 from Cengiz Sogutlu
